Different Input Types¶

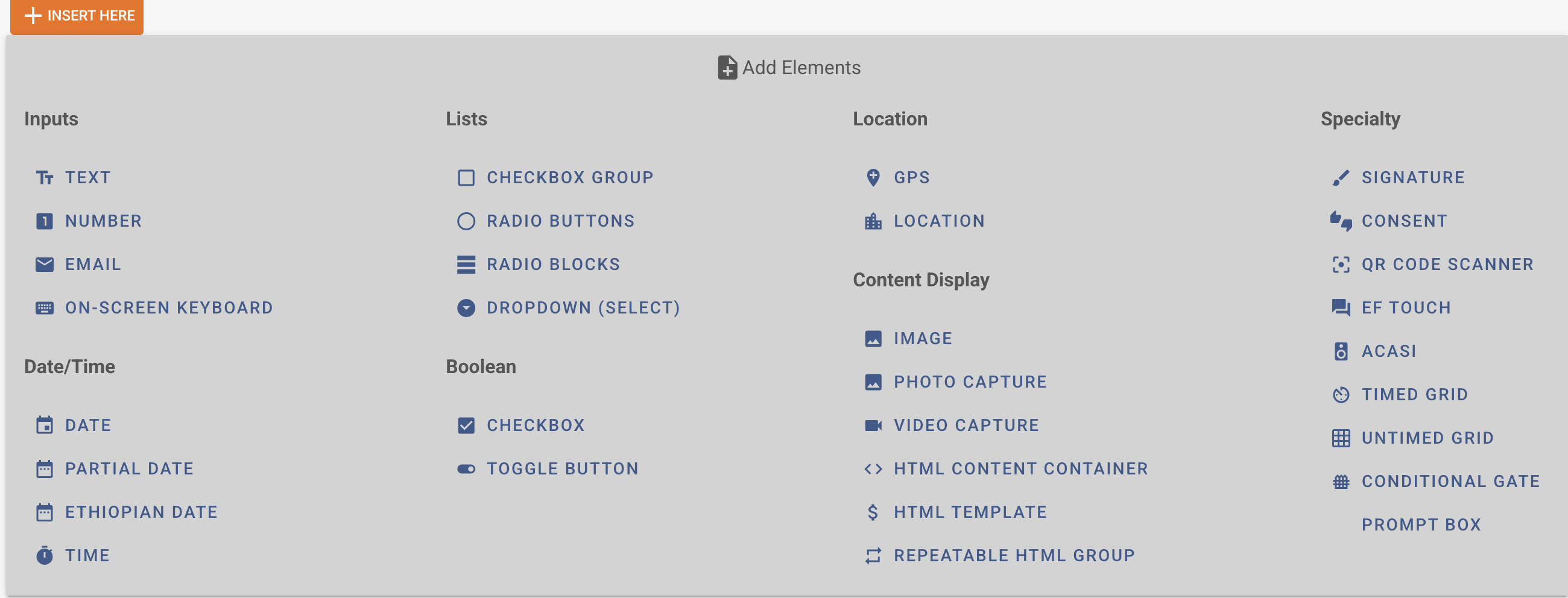

After clicking the Insert Here button when inside your section, you will see a list of all question types available to you:

All questions come in 7 groups

• Inputs - used for text or number inputs
• Date/Time - used for date and time inputs
• Lists - used for multiple/single answer selection question
• Boolean - used to indicate that something was checked
• Location - used to collect GPS location and provide Location dropdown based on the location list
• Content Display - used to display formatted HTML text or images to the screen
• Speciality - used in various settings to collect signatures, consent forms, grids, and other types of inputs.

Section item Editor¶

The section item editor screen is similar for many of the item types. It usually contains the following common elements:

• Variable name: This name has to be unique for any instrument/form, as this will be used for the CSV data output as column header with each observation/child assessed/interview being a row. Avoid special characters and spaces, use lowercase only (e.g., "age").

• Label: This will be the item label/name that will be displayed to the user (e.g. "How old are you?")

• Question number: If you input a number in here, you will see that the entire questions is moved to the right and the question number stands out when looking at the page. Use this if you are looking for a visual effect like this.

• Hint Text: This field allows you to add text that acts as a hint for the user (e.g., "Enter child's age or year of birth, if known")

Toggle (On/Off) settings per question

• Required: Selecting this checkbox marks the element as a required field. This ensures that users will enter a value before proceeding to other instrument sections or finalizing the instrument/form.

• Disabled: Selecting this checkbox marks the element as inactive. The item is visible to the user on the tablet, but its value cannot be changed.

• Hidden: Selecting this checkbox makes the element inactive AND invisible on the tablet.

• PII - Personally Identifiable Information. This setting marks the input as PII which lets you remove this field from the CSV export file when this option is selected. Easily share data by de-identifying it whn using this option.

You will have access to two more tabs allowing you to add Skip Logic and Validation to your questions.

Conditional Display tab

• Skip if - Use this field to define logic for the input to be omitted if the condition is true.

• Show if - Use this field to define logic for the input to be displayed when the condition is true.

Find examples of skip logic here

Validation tab

• Warn if - fail the user submission with a warning only once. This is to alert the user that perhaps they are entering something out of the defined boundaries. The warn if logic will allow the user to proceed if they click the Next/Submit button a second time.

• Warning Text - The warning text to be displayed to the user when the condition is triggered.

• Valid if - define logic to contain a valid definition of the input

• Error text - the text to be displayed when the above condition is not met.

Find examples of validation logic here

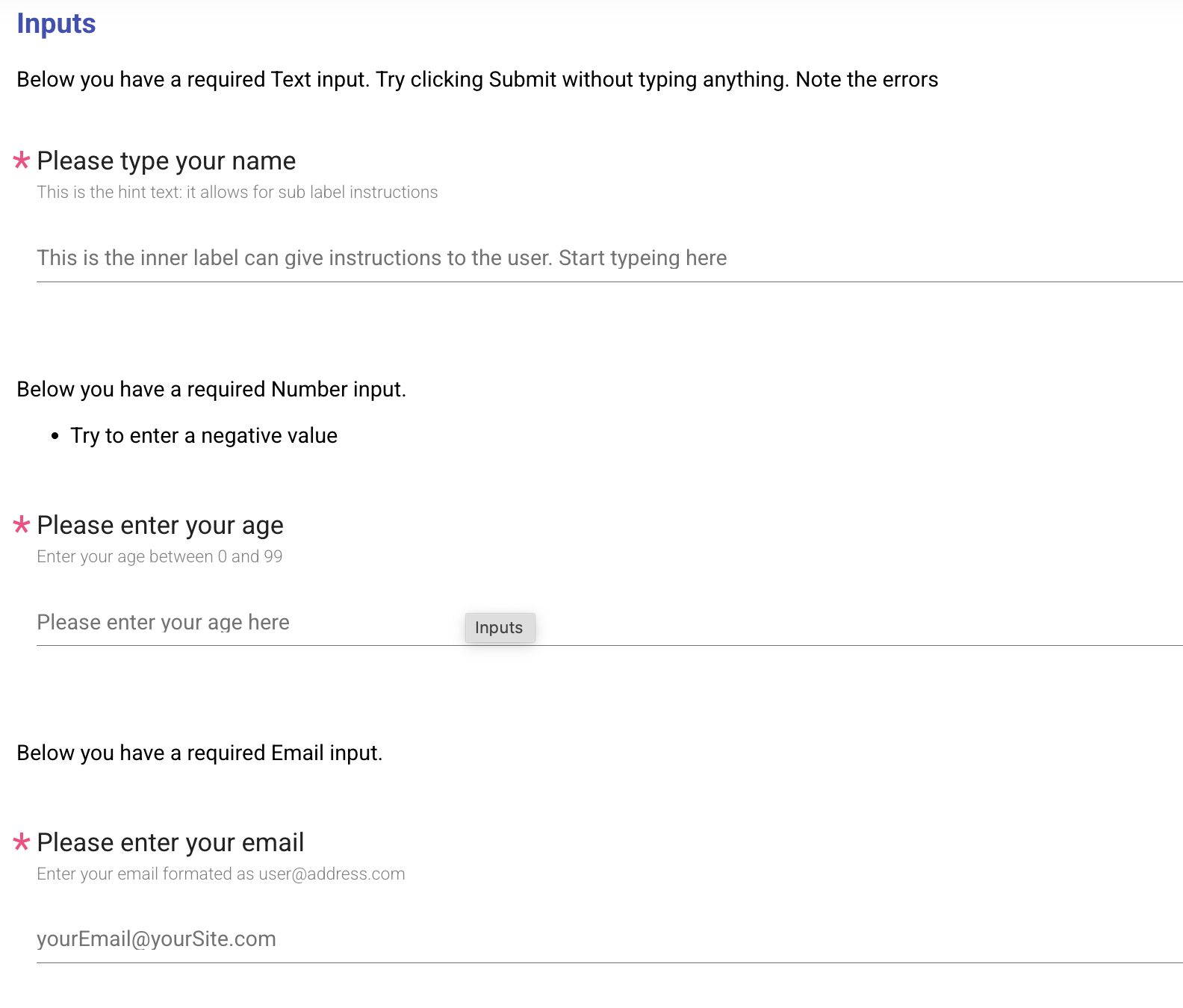

Inputs¶

• Text - use this input to ask the user to type in some text. Here the user can type in anything. Check out this input's configuration options Text, Email, Date, Time Inputs Configuration

• Number - use this input to ask the user to type in some number. Note that this input doesn't allow text to be inserted into the field. On tablets the number keyboard will open automatically. This input also allows us to specify a minimum and maximum numbers under the Validation tab Check out this input's configuration options under Number Input Configuration

• Email - use this input to allow the user to only enter email addresses.

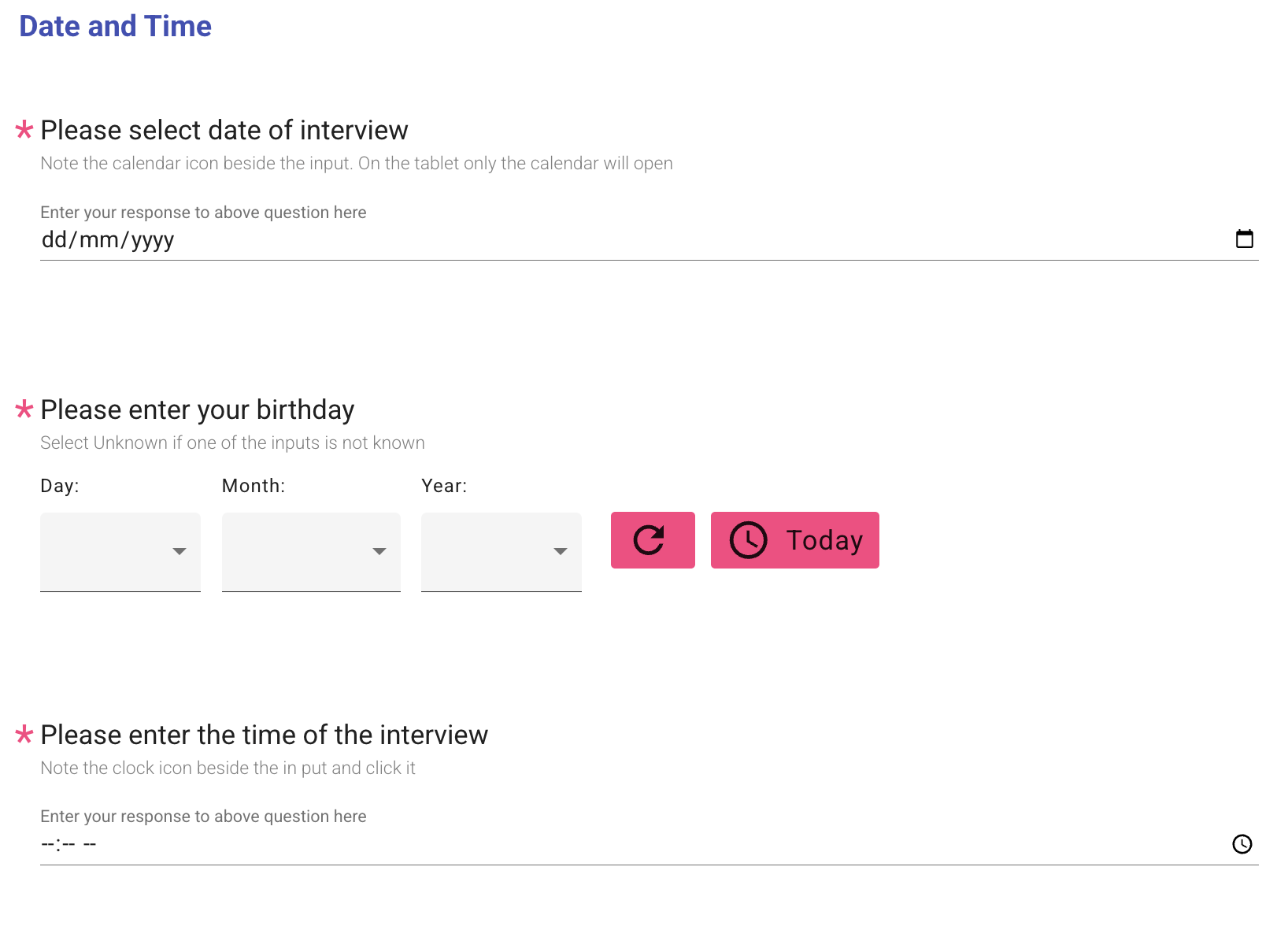

• Date and Time

Date - The date input allows us to select a date from a calendar input.

Partial Date - is a special date that allows us to collect the date with some missing elements. We can mark the day as Unknown, or the year as Unknown.

Time - this input allows us to select the time.

GPS Item¶

Use the GPS item to record the location (longitude & latitude) of the user while filling in the instrument/form.

We suggest placing a GPS item always in its own section. Do not combine with other items.

When selecting to add an item of the GPS type, Tangerine presents the below item editor screen.

The following might be a way to configure this item:

Variable name: Enter "gps".

Hint Text: Leave blank

Hit "SUBMIT" to see the below item added to the section editor.

On the tablet this item will look like this:

Location¶

This item type offers a dropdown listing of predefined location information such as, e.g., region, district, and school name. Before you add this item to your form, you need to upload a location list and configure Tangerine:

To see a video of how to do this Watch the video

First, decide what levels you would like to show and prepare a CSV file that contains your locations and ids. Each column header will present a location level (e.g. column A header might be region; column B header might be district, etc.). Make sure each level/column header contains only a single word and no spaces.

Second, define the location levels for Tangerine. Click Configure/Location Lists and add the desired levels using the '+' sign

Click "Create a New Location Level".

Enter the name of the "highest" location level under "Label" (e.g. region). Repeat this process for all other location levels, however, for each "child" level, select which is the parent level. E.g. in the case of district, the "Parent Level" would be "region", and so forth. Hit "Submit" to save.

Next, click the Import tab and select "Import CSV". Double check that your CSV file contains only those columns that you have defined as levels and spelled exactly the same!

Download a sample location list file with IDs:(https://drive.google.com/file/d/1y3X0aMJKRYx51--jPC_3OUkMpmkhyEn-/view)

Once you selected the CSV, Tangerine will ask you to map the location levels you already defined to the column headers found in your csv file.

Click on the small arrows to select the matching column header. For each ID field, select "Map a column to a level and select "AutoGeneratedID" for the ID as shown in the example below.

Then click "Process CSV" as shown in the screen above. Once processing is completed, you will receive a notification like this:

Once you have successfully uploaded a location list and prepared Tangerine, you can add the location input item to your form. The following might be a way to configure this item, once you completed the above steps.

If you think that your location list may change significantly, and you'd like to re-upload it at some point thus not implementing any changes manually, consider adding manual IDs to your location file. In the instruction above, you saw how to add the Autogenerated ID that Tangerine inserts. These IDs, however, are not persisted when you re-upload your location file. In such cases, where you know that you'd rather re-upload the entire file, we recommend that you insert an ID column and you preserve those IDs across versions of your location list. By doing that you ensure that any matching on location IDs (and not on Location labels) will be persisted.

To upload a location file with IDs, first create those IDS in the Excel file. Then, on the Map location field instead of selecting Autogenerated ID, select the column representing the ID for the corresponding level.

Check out this Excel file to see a location list with IDs that you can import in Tangerine. The formula for generating the IDs can be copied to your own file: Download a sample location list file with IDs: (https://drive.google.com/file/d/1y3X0aMJKRYx51--jPC_3OUkMpmkhyEn-/view)

Variable name: Enter "location".

Hint Text: Leave blank

Show levels (ex. county,subcounty): Enter "province,district,school"

Show meta-data: Leave blank

Hit "SUBMIT" to see the below item added to the section editor.

On the tablet this item will look like this:

Checkbox group (Checkbox, Radio Buttons, or Dropdowns)¶

This item type lets you define a checkbox item that lets a user pick one or more options.

The following might be a way to configure this item:

Variable name: Enter "books".

Label: Enter "What kind of books do you like to read?"

Hint Text: Enter "Tick all that apply"

Value (answer option): Enter the data value for the first answer option, e.g., "0"

Label (answer option): Enter the label for the first answer option, e.g., "None"

Hit "ADD ANOTHER" to add additional answer options, e.g.:

Value (answer option): "1"

Label (answer option): "Storybooks (fiction)"

Hit "ADD ANOTHER" to add additional answer options, e.g.:

Value (answer option): "2"

Label (answer option): "Books about real things (non-fiction)

When done adding all answer options, hit "SUBMIT".

On the tablet this single checkbox item will look like this:

Radio Buttons¶

Radio buttons are an item type used for items that allow for only one answer. The configuration for radio buttons is the same as for checkbox group with one exception. You will see that radio button options have a check mark to indicate which answer is correct. This is used in conjunction with the Threshold defined in the section header.

When you have a threshold defined as 4, and for each question there is only one question option defined as correct, Tangerine will discontinue (hide the questions) after 4 consecutive replies are given as not correct. You can use this in EGMA tasks or in any other scenario where this makes sense

On the tablet the radio button item will look like this:

Dropdown¶

Dropdown is an item type used for items that allow for only one answer to be picked from a dropdown list of items. This item type is convenient when there are many options to choose from. The configuration for a dropdown item is the same as for checkbox group.

On the tablet the dropdown item will look like this:

Timed Grid¶

This item type facilitates timed assessment approaches, e.g., to assess letter sound knowledge, oral reading fluency or math operations. The following might be a way to configure this item:

Variable name: Enter "letter_sound".

Number of columns: Enter the number of columns by which you'd like to organize the items. Enter, e.g. "4" (Tip: choose less columns for larger items, like words or operation problems)

Hint Text: Leave blank

Auto Stop: The autostop field defines the number of consecutive incorrect items, starting from the first one, after which the test stops automatically. For example, with an autostop value of 10, if a child has the first 10 items all incorrect, the test will stop. If a child has the first 4 items correct and then the following 10 items incorrect, the test will not autostop.

Mark entire rows: This option allows the user to mark and entire row of items as incorrect (e.g. if a child skipped an entire row of sounds in a letter sound assessment)

Duration in seconds: Enter the time allowed to complete this assessment, e.g. "60" for 60 seconds or one minute.

Options (each option separated by a space): Enter all grid items here. Separate each item by a space from the next; if you have extra spaces please remove them!

When done adding all answer options, hit "SUBMIT".

On the tablet the timed grid item will look like this:

HTML Content Container¶

This item type allows for flexible integration of headers, help text, or transition messages that do not require any user input or response. You can treat this container as a variable and hide or show different instructional text upon the selection of different options.

The following might be a way to configure this item:

Variable name: Enter "Assessor instructions".

Mark entire rows: This option allows the user to mark an entire row of items as incorrect (e.g. if a child skipped an entire row of sounds in a letter sound assessment)

Rows 1-X: Insert assessor instructions, use html tags to insert line breaks or formatting (e.g.
for a line break; text for bolding a piece of text, etc.).

When done adding all answer options, hit "SUBMIT".

On the tablet this HTML container item will look like this:

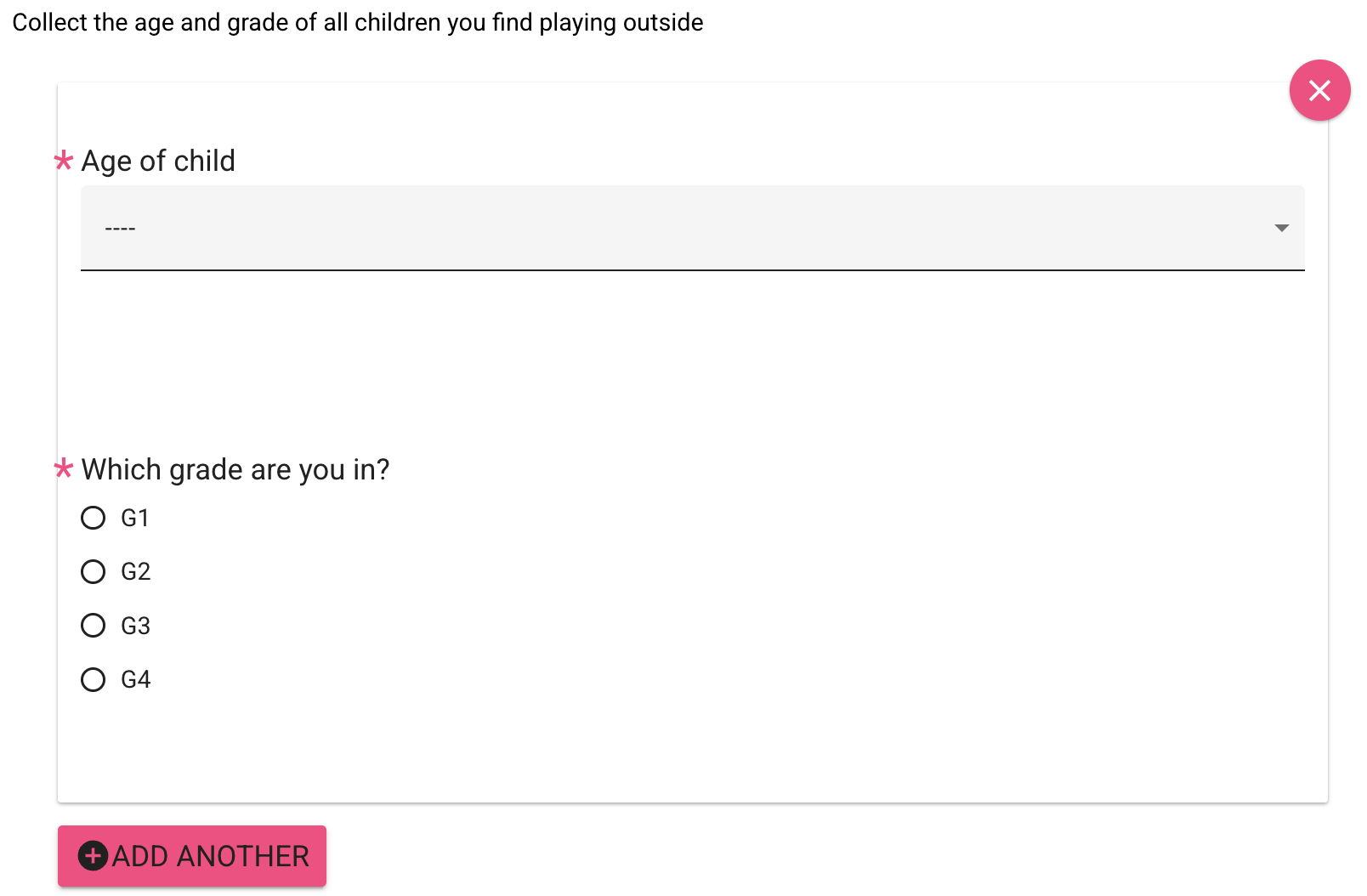

Repeatable Group¶

The repeatable group is very useful when you don't know how many times you'd need to ask the same questions.

Speciality Inputs¶

Signature - this input allows the data assessor to collect a signature. This can be a signature for consent or delivery of materials.

Consent - this input allows a consent form to be included in your survey. Consent forms should be on single page. Clicking No on a consent form terminates the current form.

QR Code scanner - this input allows you to scan QR codes, Data matrix codes, or barcodes like ISBN numbers. We use this for student number or to collect book inventory.

EF Touch - this is the Executive Function input. It allows to perform tests measure EF. Please contact us if you'd like a demo of this function. Check out this input's configuration options under EF Touch Configuration

ACASI - this is the audio computer assisted self interview input. It includes sounds and images, allowing the assessor to hand over the tablet to the participant. The participant then listens to the audio and answers the questions in a private setting.

Timed Grid - Timed grids are very specific to the EGRA/EGMA subtest. Timed grids can be used for word, invented works, paragraph reading and other tests where the time is of importance. The grid contains a time expiration in seconds, but we can also track an intermediate number to see where the student was reading at the Xth second.

Untimed Grid - similar to display as timed grids, the untimed grid doesn't provide a stopwatch.

Copying Items¶

If you have an element and/or content which is the same as a previous element (e.g., radio buttons) that you would like to insert into your instrument quickly, without having to click "INSERT HERE" again, there is a COPY feature that you can use to do this. First, enter your original content (e.g., variable name, labels, and values) and then click SUBMIT. Once the first step is complete, next you click on the icon. Doing so automatically creates a duplicate of all your original content, except the variable name, which you will need to edit, if desired. In the image below, you can see that all duplicates are auto-populated with the name "widget," followed by an underscore, and a mix of letters and numbers (always different from the previous copy). If you would like to, you can edit all the content of the copy to fit your needs.
